Laser Marking 401: Pricing A Fiber Laser Marking System

A lot has changed since this post was first written and published. China is responsible for most of those changes, in my opinion.

Twenty or so years ago fiber laser sources were mainly limited to just a few companies. IPG was the primary supplier of most fiber lasers and the price of those lasers seemed to be comparable to the price of Nd:YAG lasers.

Pricing Parity of Nd:YAG and Fiber Lasers

For decades YAG lasers were the only means of producing the 1064 nm wavelength of laser light which is the preferred wavelength for most metal marking lasers. Even though the prices of YAG and fiber laser sources were similar, fibers offered advantages in terms of size and wall power efficiency and eliminated the need for maintenance and consumables. The laser marking industry gradually started replacing YAG lasers with fiber lasers, and YAG laser manufacturing for laser marking systems began to disappear.

Fiber lasers require very little or no maintenance and this posed a dilemma for those laser marking companies that had a business model based on YAG lasers. A YAG laser requires regular service in the form of optics alignment, consumables replacement and component failures. The manufacturers of those systems all had service departments because the end users of YAG laser marking systems were rarely able to maintain the laser themselves.

A YAG laser marking system became a "cash cow" for the manufacturer for the lifetime of the system. That source of income began to dry up as YAG lasers were replaced with fiber lasers. YAG laser marker manufacturers either went out of business or modified their fiber laser products to maintain a high-income stream from those systems.

The first Chinese made fiber laser marking systems were produced to serve China's internal needs. Those first systems used imported IPG fiber lasers and imported Scanlab SCANcube scanheads. The user interface was via a Chinese developed marking software program called EZ Cad. After just a few years Chinese manufacturers were producing their own fiber laser sources and scanheads. The fiber lasers all had the form factor and interface of IPG Rev. B fiber laser sources and the interface and form factor of Scanlab SCANcube scanheads with an xy 2-100 interface.

Today there are several fiber laser and scanhead manufacturers in China. Some of them are very low quality (and very low cost) and others have quality that rivals the quality of the original imported sources at a considerably lower price. The prices of these major components is so low that in many cases it makes more sense to treat a failed component as a consumable rather than going through the time and expense of having it repaired.

Chinese fiber laser marking systems appeared in the US about 15 years ago, and Jimani jumped on that bandwagon. One of the first issues we faced was the inconsistency of the products coming to us. I have said for many years that prices for anything made in China are a race to the bottom. Lower prices are important, but dirt-cheap prices always mean a compromise in quality and performance. We have resisted making changes to less expensive but lower components just for the sake of being able to offer a cheaper system.

There are now dozens of companies in the US offering fiber laser marking systems that have their roots in China. Some of these systems are complete Chinese made systems that are just rebranded for sale in the US. Others are a mix of Chinese made components integrated into their own design of laser marking system. In either case the final system cost is considerable less than a YAG laser marking system with similar capabilities.

Categories of Fiber Lasers

I believe that these days fiber laser marking systems fall into three categories:

1. High end systems that address a full range of customization and automation
2. Middle end systems with high end components that don't lend themselves to customization
3. Low end systems with the cheapest components available

Jimani has elected to address the Middle-End Systems market. I'm of the opinion that those systems can serve 70% of so of the laser marking market and have a price point that makes them an affordable solution for a range of applications.

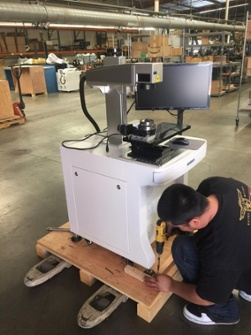

We've retired our Langolier line of laser marking systems because we don't have the engineering depth to customize every system and our Low Cost Hybrid Laser Marking systems can address most of the applications that were served by the langolier at a much lower price.

The basic components of a laser marking system are the same as they were 20 years ago: Laser source, scanhead, software and workstation. But for most applications the cost of a laser marking system is half the price of 20 years ago and fiber laser capabilities have far surpassed what was possible with YAG lasers.

How much does a fiber laser marker cost?

We’re frequently asked the question, “How much does a fiber laser marker cost?” The answer to that question depends on the application and the configuration of the system. To determine the cost and configuration of a fiber laser marking system, consider the following questions:

• What type of materials do you intend to mark?
• Is there a depth and/or cycle time requirement for the marking?
• What is the required marking area?
• Is there a requirement for a workstation, or will the marker be mounted onto an existing workstation of some type?
• If the marker is to be mounted on a workstation, is there a requirement for that workstation to have an enclosure?
• Is there a requirement for programmable external axes of motion such, as X, Y, Z, or Rotary?
• What are your expectations for reliability, training and support?

Answers to those questions go a long way toward defining a system configuration and price. In this article, I’d like to discuss the various possible configurations of steered beam fiber laser marking systems.

The basic components of a steered beam fiber laser marking system must include:

• A fiber laser source
• A means of delivering power and control signals to the laser
• A scanhead with some type of focusing lens
• Laser marking software and a computer to run it on
• Some type of control board that converts laser marking job files into scanhead motion commands and laser control commands

Basic Fiber Laser Component Set Costs

Obviously, the quality of selected components has everything to do with the reliability and performance of the system but, with those components in a proper configuration, one has the ability to direct a focused laser beam over the surface of a substrate in a controlled manner.

If the lens is focused on a suitable substrate (some material that can absorb the wavelength of light produced by a fiber laser), then those components will be capable of producing marks on the surface of the substrate. Those marks can be in whatever form is allowed by the laser marking software, such as text, graphics, or machine-readable codes.

OEM Fiber Laser Configuration

At Jimani, this very basic configuration is what we call our OEM Fiber Laser Kit. It is intended for use by those who wish to integrate the components into their own workstation or automation.

An OEM is a laser controller with laser marking head that can be integrated into automation or mounted on a custom stand.

An example of a useful application of this configuration might be a manufacturing facility that has an existing conveyor system with parts moving along it. If those parts require some type of marking or identification, the scanhead and lens of an OEM Fiber Laser Kit could be mounted above the conveyor, with the focusing lens positioned such that parts on the conveyor are the focal point of the lens. As parts pass under the lens, the conveyor system could communicate with the marking software and then mark each part as it passes under the lens.

Fiber Laser Workstations

Another application for an integrated-component workstation might be a workstation-mounted laser. There have been many instances of users mounting a laser marker onto the table of an old milling machine, and then using the X, Y, and Z motion axes of the mill table to position parts to be marked and to focus the lens on them.

Although prices vary with quality and support, the core components to move a laser beam around and to draw lines in the shape of text and graphics are the same for all marker systems and integrators. A laser, scanhead, F theta lens, marking software, and control electronics are found in every steered beam fiber laser marking system.

Many laser marking applications require that the system be able to mark and accommodate a wide range of part types and sizes. Users with this requirement generally prefer to buy a fiber laser marking system that is already integrated into a versatile workstation. The workstation should allow the operator to easily load a wide variety of part sizes and shapes, as well as provide the ability to position those parts to the correct marking location.

Most fiber laser marking systems, in my opinion, don’t pay enough attention to the Z-axis requirement needed for a versatile workstation. No matter what, the focusing lens has to be some distance away from the surface being marked. The larger the marking field of the lens, the further away the lens must be from the surface of the part. For example, a 7-inch-square marking requires that the bottom of the focusing lens be about 11.5 inches away from the part. “Away” generally means “Above,” since most lens and scanheads are mounted above the parts to be marked.

A 9-inch-square marking field requires that the bottom of this lens be positioned more than 15 inches above the marking surface. When trying to mark large or tall parts, the Z-axis requirement of the system is the height of the part, plus the distance between the lens and the marking surface at the focal point of the lens. Unless one is only marking thin plates or small parts, a substantial amount of Z-axis travel is essential to a versatile workstation.

The standard workstation at Jimani was designed with that in mind. Our design was highly influenced by or job shop marking business, in which we have a huge range of part sizes to mark. We also need the ability to mark tall parts with large field lenses, and that means lots of Z-axis travel requirement. As you can see in the example below, lots of Z-axis travel means a tall system. If you were only marking nameplates, this workstation configuration is probably overkill.

The workstation above is an open-frame system. It allows the utmost flexibility for part setup and loading. However, many users are uncomfortable with open-frame systems and prefer to have an enclosure around the marking area.

When designing or buying an enclosure, keep in mind that the enclosure dictates the size of the largest part that can fit inside of system.

I have seen many systems with enclosure panels removed or cut open in order to accommodate larger parts, and I am always left to wonder why the enclosure was installed in the first place. If we place an enclosure around our standard workstation, it looks like this:

Enclosed systems generally require some type of fume extraction to remove fumes or vapors that might be created during the marking process and trapped by the enclosure.

Take note of the fume extraction hole in the back of the enclosure in the photo. When an exhaust hose is attached to the back wall of the enclosure, the draft of exhaust air pulls fumes and vapors away directly below the lens.

If a marking system has an enclosure then, by definition, it must be mounted on some type of workstation. Although there usually is not a lot of cost associated with an enclosure, workstations vary in size and functionality and can add thousands of dollars to the cost of a system.

Custom Fiber Laser Systems

Fiber laser marking system enclosures can come in many shapes and sizes, and they can be customized for specific applications. Just remember, the size and shape of the enclosure will ultimately determine the usefulness of the system. Below is an example of a custom enclosure that was designed for a very specific application. This particular system had to accommodate a long part that was marked in several places along its length and then rotated in order to be marked on the other side.

A custom system can be as elaborate as a systems integrator is willing to build or an end user is willing to pay for. Typically, a custom system is made for a specific, repetitive application.

Customization can be as simple as fabricating fixtures to hold and locate specific parts, or as elaborate as integrating a laser marker with some type of automated parts feeding and handling system, like a bowl feeder or conveyors.

When the automation becomes very complex or elaborate, though, the laser marker system provider might not be the best choice of vendors to build the entire system.

The world is full of automation houses that design and build complicated automation systems and they will generally do a better job of it than a laser marking systems manufacturer. In many cases, the laser marker is the simplest component in an elaborate automated system.

Over the decades we have been in this business, we have seen many good laser marking applications labeled as unsuccessful, simply because laser marker manufacturers got in over their heads when they took on the task of building the complex automation. We’ve learned that having good automation partners is a far better approach than trying to sell and build something that we’ve never built before.

Automation is a broad term. It might be as simple and one or more software-controlled, motorized axes, or as complicated as a full-blown conveyor system that sorts, aligns, and feeds parts under the marking field. In some cases, the cost of automation will exceed the cost of the laser marker itself.

A Google search on “fiber laser marking systems” will result in a plethora of equipment sources. Pricing inquiries reveal a broad range of prices for equipment with seemingly similar performance specifications. As with most things, the devil is in the details. A collection of low-end components will result in a low-end system. This applies to both the laser marking hardware components and the laser marking software.

Editor’s Note: This article was first published in Photonics Online. You can read the original article.here.
